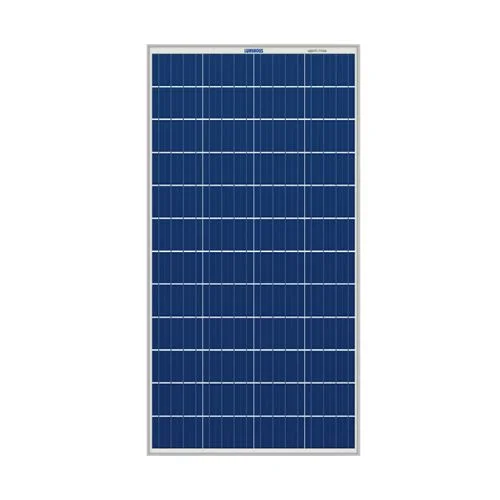

105W/12V Polycrystalline Solar Panel
26 in stock
- Capacity – 105 W, 12V.
- High strength light-weight aluminum frame design for high torsion resistance against winds and snow loads.
- 25 years performance warranty.
- Compliance to IEC standards.
- Luminous offers a range of both Polycrystalline PV modules and Mono PERC halfcut solar panels. Our panels comply with IEC standard and are suitable for a wide range of applications.
₹3,700.00 ₹9,000.00
26 in stock
Compare- Features of Polycrystalline cells type panel.
- Capacity – 105 W, 12V.
- Voltage: Voltage at Max Power (Vmax) – 18.05V, Open Circuit Voltage (Voc) – 22V.
- Current: Current at Max Power (imax) – 5.82A, Short Circuit Current (isc) – 6.28A.
- 25 years performance warranty.
- Compliance to IEC standards.
- Best in Class conversion efficiency.
- Anti-reflective coating and back surface (BSF) for more light absorption.
- Advanced EVA (ethyl vinyl acetate) encapsulation to give better protection to modules.
- High strength light-weight aluminum frame design for high torsion resistance against winds and snow loads.
- PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions.
- Excellent Low light performance in low visibility in clouds, evening, and morning.
| Weight | 8.2 kg |
|---|---|
| Brands | LUMINOUS |
| Particulars | Description |
|---|---|
| Brand | Luminous |
| What’s in the box | 1N Solar Panel,1N Warranty Card |
| Dimensions (in cms) | 103.5*67.0*3.4CM |
| Wattage | 105Wp |
| Application Area | Homes and SmallShops |
| Panel type | PolyCrystalline |
| No. of cells | 36 |
| Open circuit voltage voc | 22V |
| Short circuit Current Isc | 6.28A |
| Maximum Power Voltage Vmp | 18.05V |
| Maximum Power Current Imp | 5.82A |
| Warranty | 60 months |
