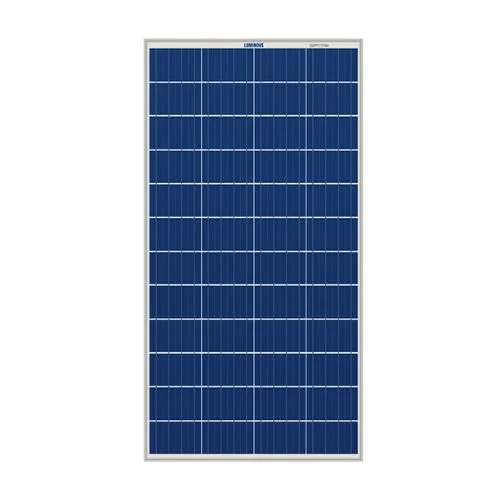

335W/24V Polycrystalline Solar Panel

LUMINOUS
Availability:

27 in stock


  • Package contains : Pack of 1, 335 Watt-25Volts mono crystalline solar panel
  • EVA capsulation for better protection of modules, weather resilient, high cell conversion efficiency
  • Height – 6.4 feet, width – 3.2 feet, weight – 22kg
  • Output power capacity: 335 Watt;
  • operating voltage: 24 volts; produces 8 Ampere current *Strong aluminum frame on the panel provides resistance from any torsion whatsoever

24,000.00

27 in stock

Compare
  • Features of Polycrystalline Cells type Panel .
  • Capacity – 335 W, 24 V
  • Voltage: Voltage at Max Power (Vmax) – 38.08 V, Open Circuit Voltage (Voc) – 46.02 V .
  • Current: Current at Max Power (imax) – 8.80 A, Short Circuit Current (isc) – 9.43 A .
  • 25 years performance warranty.
  • Compliance to IEC standards.
  • Best in Class conversion efficiency.
  • Anti-reflective coating and back surface (BSF) for more light absorption.
  • Advanced EVA (ethyl vinyl acetate) encapsulation to give better protection to modules.
  • High strength light-weight aluminum frame design for high torsion resistance against winds and snow loads.
  • PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions.
  • Excellent Low light performance in low visibility in clouds, evening, and morning.
Weight 21 kg
Brands

LUMINOUS

Particulars Description
Brand Luminous
What’s in the box 1N Solar Panel,1N Warranty Card
Dimensions (in cms) 198.6*100.1*3.5 CM
Warranty 144 Months
Net Weight(In Kg) 21 Kg
Application Area Residential Applications, Homes and Small Shops
Panel type PolyCrystalline
No. of cells 36
Open circuit voltage voc 46.02 V
Short circuit Current Isc 9.43 A
Maximum Power Voltage Vmp 38.08 V
Maximum Power Current Imp 8.80 A
Warranty 144 Months
