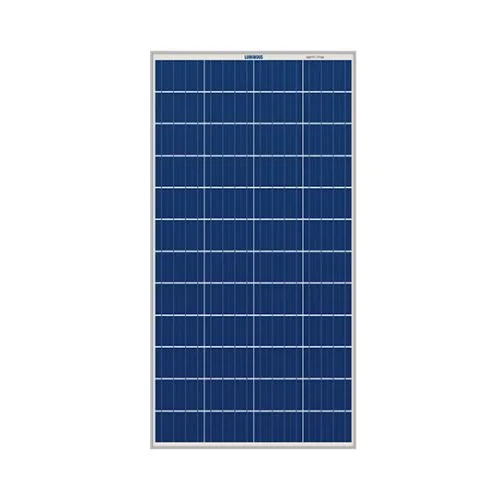

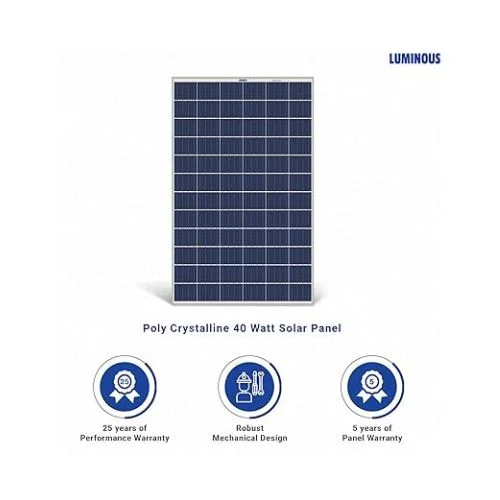

40W/12V Polycrystalline Solar Panel

LUMINOUS
Availability:

19 in stock


  • BIS Certified – Luminous solar panels are BIS certified as per IS/IEC standards; Space Requirement – 5-6 sq. feet (approx.) for a single panel.
  • Technology – Equipped with high-performance Grade A solar cells with PID resistant technology. The Grade A silicone cells come integrated with a powerful reflector that redirects sunlight back from the cell. This technology leads to the generation of up to 5% more power.

1,650.00 3,400.00

19 in stock

Compare
  • Features of Polycrystalline cells type panel.
  • Capacity – 40 W, 12V.
  • Voltage: Voltage at Max Power (Vmax) – 18V, Open Circuit Voltage (Voc) – 22V.
  • Current: Current at Max Power (imax) – 2.23A, Short Circuit Current (isc) – 2.42A.
  • 25 years performance warranty.
  • Compliance to IEC standards.
  • Best in Class conversion efficiency.
  • Anti-reflective coating and back surface (BSF) for more light absorption.
  • Advanced EVA (ethyl vinyl acetate) encapsulation to give better protection to modules.
  • High strength light-weight aluminum frame design for high torsion resistance against winds and snow loads.
  • PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions.
  • Excellent Low light performance in low visibility in clouds, evening, and morning.
Weight 4.9 kg
Brands

LUMINOUS

Particulars Description
Brand Luminous
What’s in the box 1N Solar Panel,1N Warranty Card

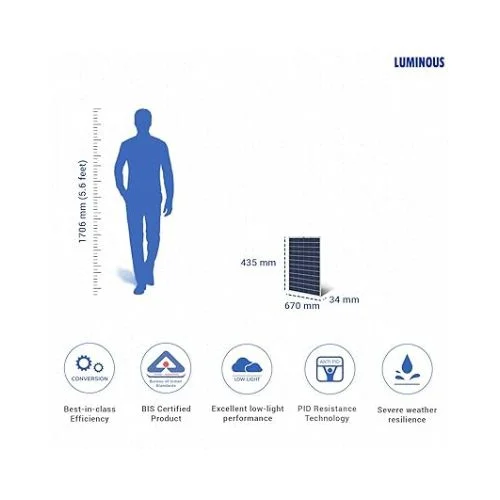

Dimensions (in cms) 43.5*67*3.4 CM
Wattage 40Wp
Application Area Homes and Small Shops
Panel type PolyCrystalline
No. of cells 36
Open circuit voltage voc 22V
Short circuit Current Isc 2.42A
Maximum Power Voltage Vmp 18V
Maximum Power Current Imp 2.23A
Warranty 60 Months
