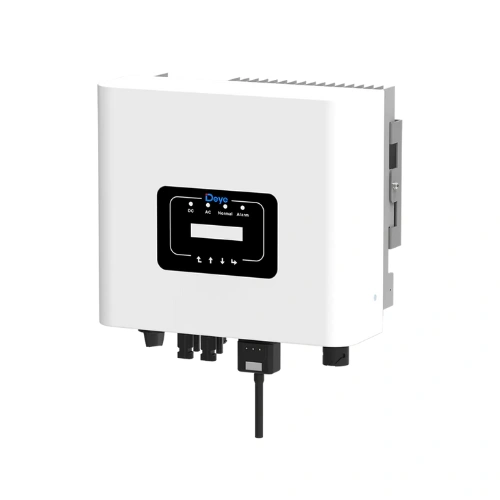

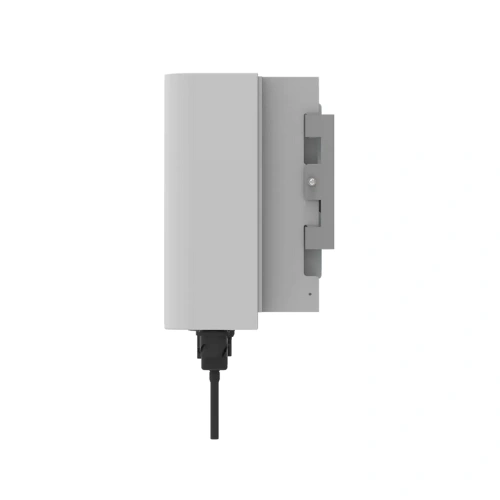

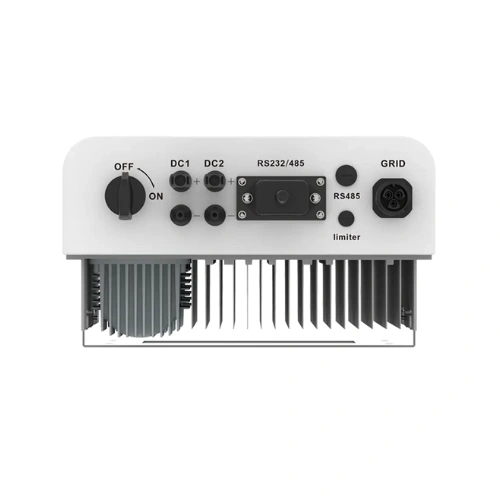

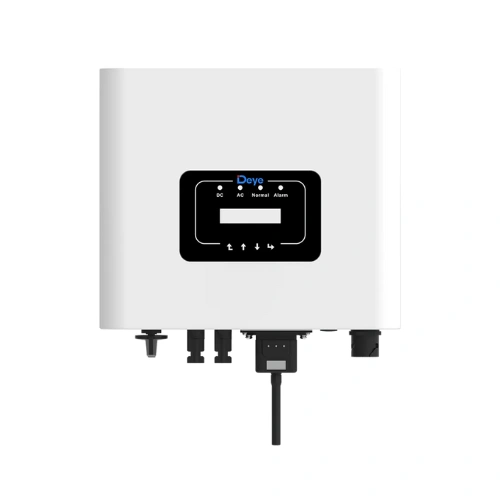

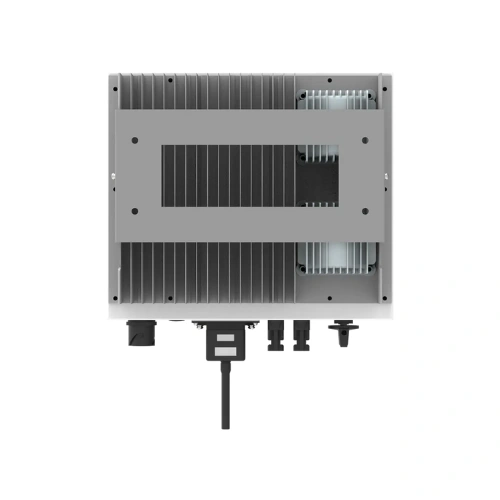

DEYE 5KW/1PH SOLAR ONGRID SUN-5K-G03
11 in stock
- 2 MPP tracker, Max. efficiency up to 97.5%.
- Zero export application, VSG application.
- String intelligent monitoring (optional).
- Wide output voltage range.
- Anti-PID function (Optional).
- Low start-up voltage of 80V.
₹34,199.00 ₹45,666.00
11 in stock
CompareHigher yields / Safe & Reliable / Smart / User-friendly : The single-phase inverter is one of the best options for residential application thanks to its smaller size and local LCD display, buttons. Also, with built-in zero-export function (external CT is needed), it offers true ease and comfort for PV system operators and installers.
Smart Monitoring Platform : Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
| Weight | 8.0 kg |
|---|---|
| Brands | DEYE |
| Particulars | Description |
|---|---|
| Brand | Deye Solar |
| Max. DC lnput Power (kW) | 6.5 |
| Max. DC Input Voltage (V) | 550 |
| Start-up DC lnput Voltage (V) | 80 |
| MPPT Operating Range (V) | 70-500 |
| Max. DC lnput Current (A) | 20+20 |
| Max. Short Circuit Current (A) | 30+30 |
| No.of MPP Trackers | 2 |
| No.of Strings per MPP Tracker | 1+1 |
| Rated Output Power (kW) | 5 |
| Max. Active Power (kW) | 5.5 |
| Rated Grid Frequency(Hz) | 50/60 (Optional) |
| Operating Phase | Single phase |
| Rated AC Grid Output Current (A) | 21.7 |
| Max. AC Output Current (A) | 23.9 |
| Max. Efficiency | 97.5% |
| Euro EMciency | 97.3% |
| Display | LCD1602 |
| Interface | RS485/RS232/Wifi/LAN |
| Cabinet Size (WxHxD mm) | 330Wx323Hx190D (Excluding connectors and brackets) |
| Weight (kg) | 8kg |
| Warranty | 8 Years |
