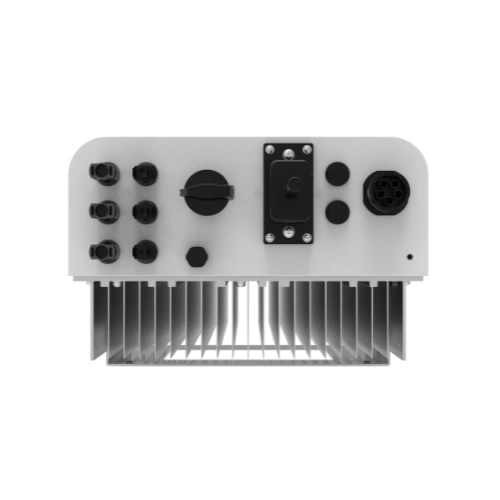

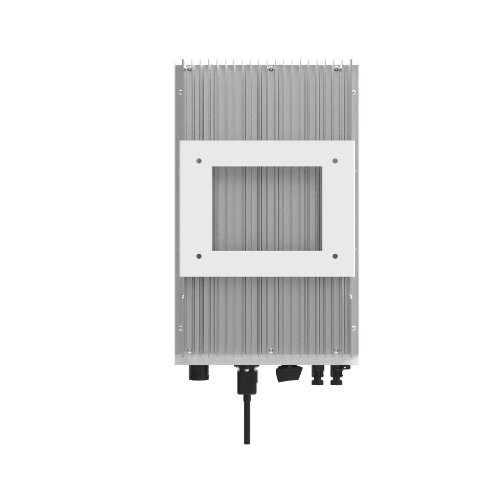

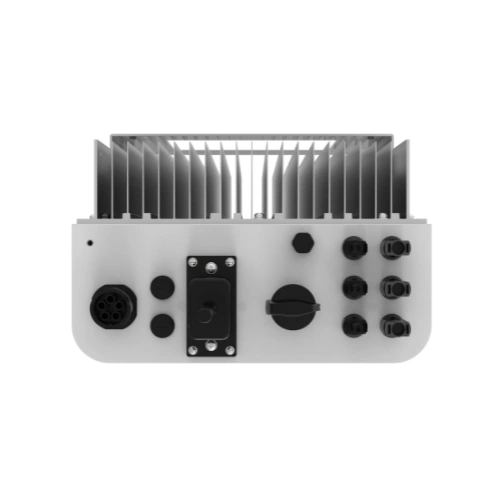

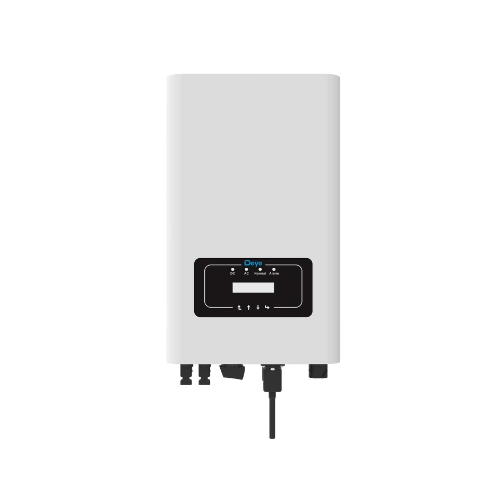

DEYE 5KW/3PH SOLAR ONGRID SUN-5K-G03
18 in stock
- 2 MPP tracker, Max. efficiency up to 98.3%.
- Zero export application, VSG application.
- String intelligent monitoring (optional).
- Wide output voltage range.
- Anti-PID function (Optional).
₹51,199.00 ₹61,199.00
18 in stock
CompareHigher yields / Safe & Reliable / Smart / User-friendly : This series inverter is specially designed for three-phase PV systems, covering a wide power range of 5kW. With compactness design, it is easy to install and operate. It supports wide AC output voltage to ensure longer working hour.
Smart Monitoring Platform: Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
| Weight | 11.0 kg |
|---|---|
| Brands | DEYE |
| Particulars | Description |
|---|---|
| Brand | Deye Solar |
| Max. DC lnput Power (kW) | 6.5 |
| Max. DC Input Voltage (V) | 1100 |
| Start-up DC lnput Voltage (V) | 140 |
| MPPT Operating Range (V) | 120-1000 |
| Max. DC lnput Current (A) | 20+20 |
| Max. Short Circuit Current (A) | 30+30 |
| No.of MPP Trackers | 2 |
| No.of Strings per MPP Tracker | 1+1 |
| Rated Output Power (kW) | 5 |
| Max. Active Power (kW) | 5.5 |
| Rated Grid Frequency(Hz) | 50/60 (Optional) |
| Operating Phase | Three Phase |
| Rated AC Grid Output Current (A) | 7.6/7.2 |
| Max. AC Output Current (A) | 8.3/8 |
| Max. Efficiency | 98.3% |
| Euro EMciency | 97.5% |
| Display | LCD1602 |
| Interface | RS485/RS232/Wifi/LAN |
| Cabinet Size (WxHxD mm) | 330Wx457Hx203D (Excluding connectors and brackets) |
| Weight (kg) | 11 |
| Warranty | 8 Years |
