- Solar Panel: Solar panels are those devices which are used to absorb the sun’s rays and convert them into electricity or heat.
- Description: A solar panel is actually a collection of solar (or photovoltaic) cells, which can be used to generate electricity through photovoltaic effect. The main partical of a solar cell is siicon.
- Solar Panel System: The main components of a solar power system are photovoltaic (PV) panels, a DC to AC power converter (called an inverter) and a rack system that holds the PV panels in place.Solar PV panels on the roofs of homes and businesses generate clean electricity when light energy hits them.
- How it is work: A solar panel is an assembly of solar cells that can convert light directly into electricity. By combining the capacity of several solar panels, part of a family’s electricity needs can be covered. This conversion is achieved thanks to the so-called “semiconductor” material from which each solar cell is made. PolyCrystalline
- solar panel: PolyCrystalline or MultiCrystalline solar panels are solar panels that consist of several crystals of silicon in a single PV cell. Several fragments of silicon are melted together to form the wafers of polycrystalline solar panels.These solar panels absorb energy from the sun and convert it into electricity.
- Advantages of polycrystalline solar panel: Polycrystalline solar panels cost less and have a more simple manufacturing process.
- Polycrystalline solar panels tend to have a lower heat tolerance.
- There is less wastage of silicon while manufacturing these panels.
-39%
Solar, Solar Panel, Solar Poly Panel

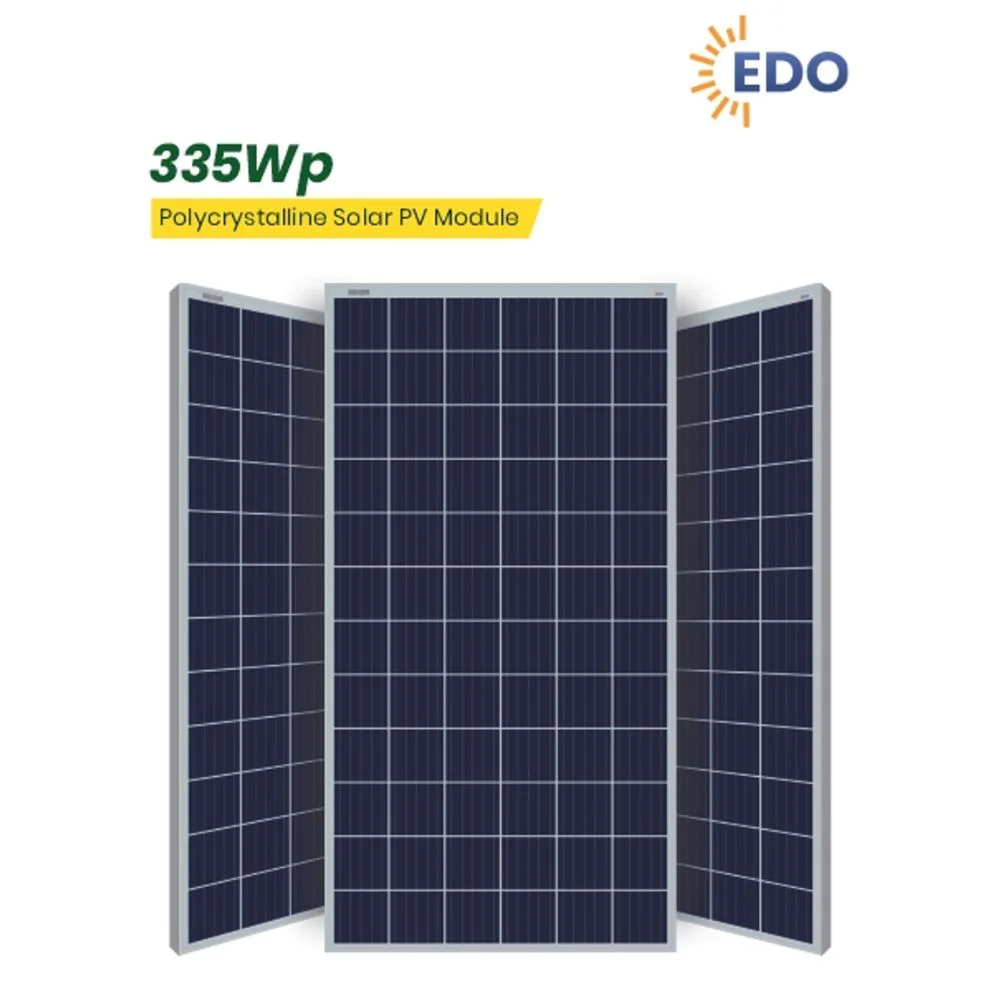

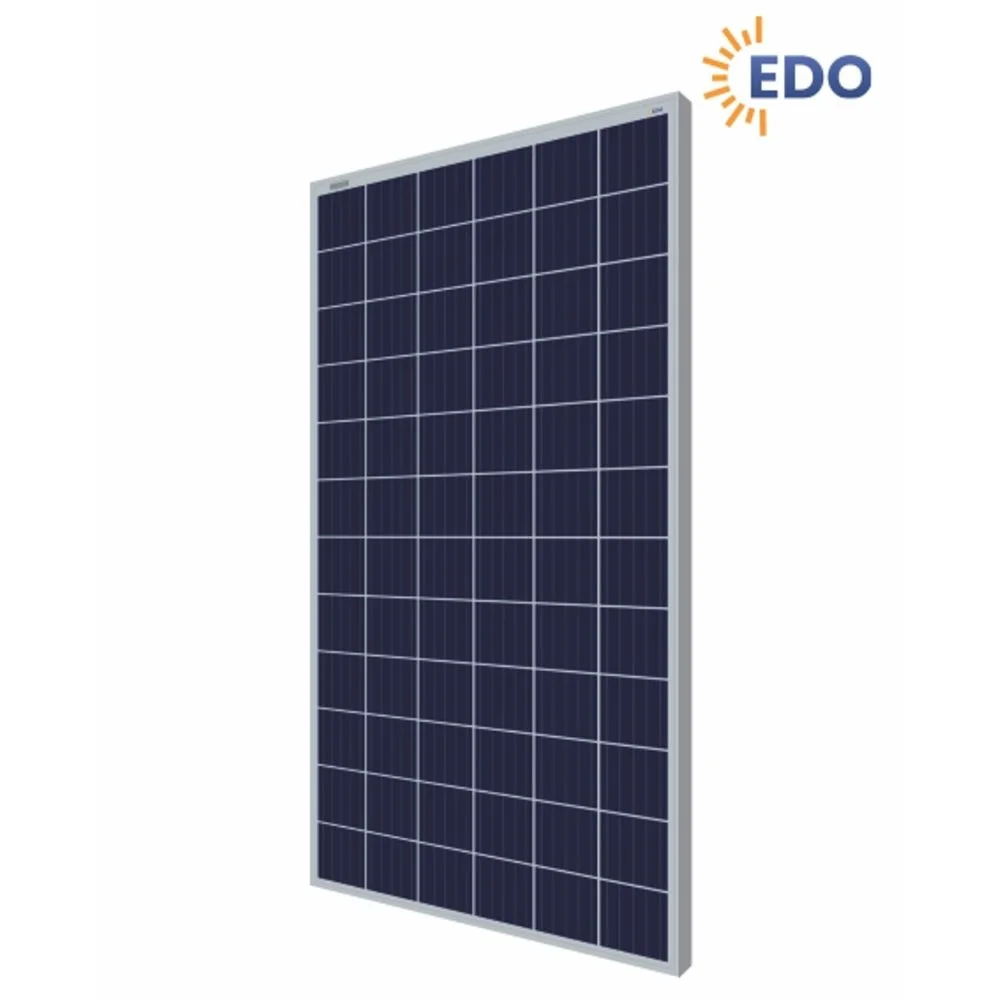

WAAREE 335Wp 72Cells Polycrystalline EDO PRO Solar Module
Availability:
Out of stock
- Superior module efficiency as per international benchmarks.
- 1500 VDC system voltage for lower BoS cost.
- Glass with anti reflective coating improves light transmission.
- Salt mist, blowing sand and hail resistant.
- PID resistant with long term reliability.
- Sustain heavy wind & snow loads (2400 pa & 5400 pa).
- Modules binned by current to improve system performance.
₹9,399.00 ₹15,455.00
Out of stock
CompareWeight | 21.50 kg |
---|---|
Brands | WAAREE |
Particulars | Description |
---|---|
Brand | Waaree |

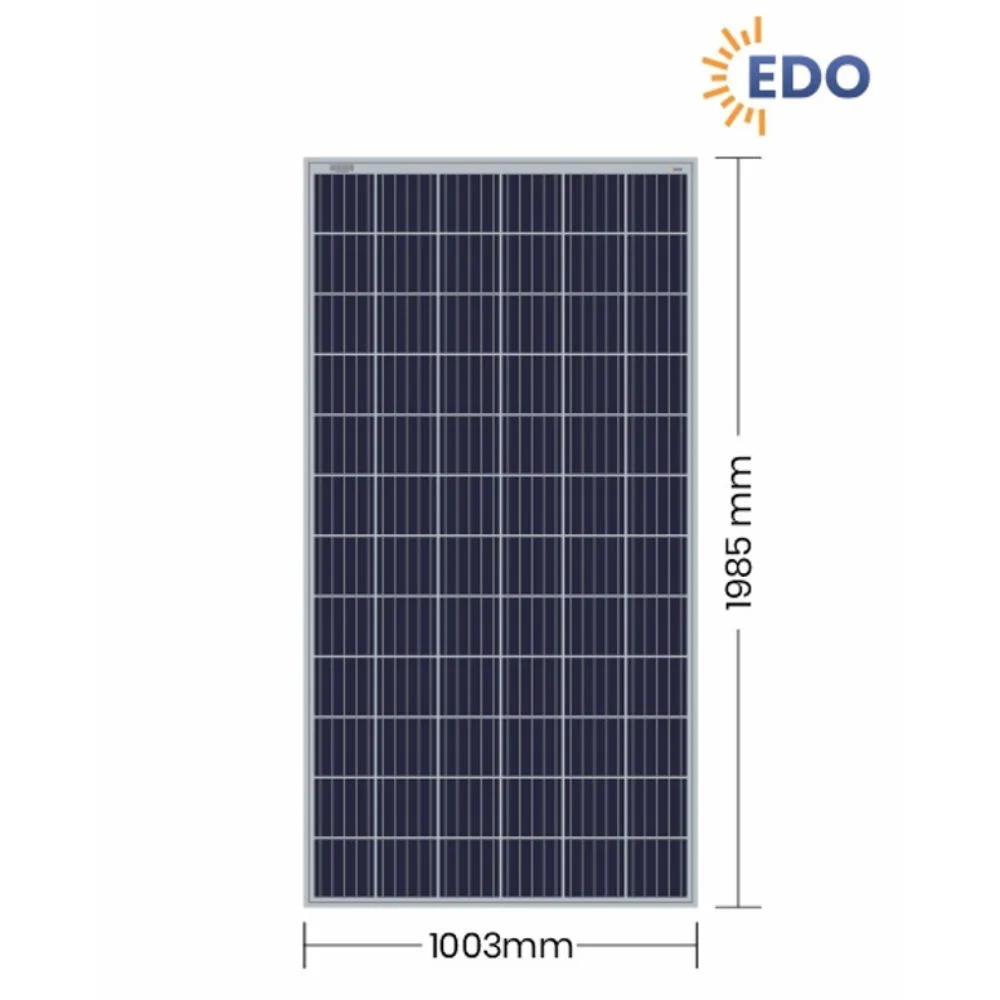

Length x Width x Thickness (L x W x T) | 1985 mm (L) x 1003 mm (W) x 35 mm (T) |
Weight | 21 .5 kgs |
Solar Cells per Module | 72 / (12×6) |
Solar Cell | Poly crystalline Silicon |
Encapsulate | PID Free & UV Resistant |
Junction Box (Protection degree / Material) | IP67/IP68 rated / Weatherproof PPO |
Connector (Protection degree / Type) | IP68 rated / MC4 compatible |
Cable Cross – Section & Length | 4 mm 2 & 1200mm |
Module Type | Poly Non-DCR |
Warranty | 10 years Product + 25 Years Output Warranty |
